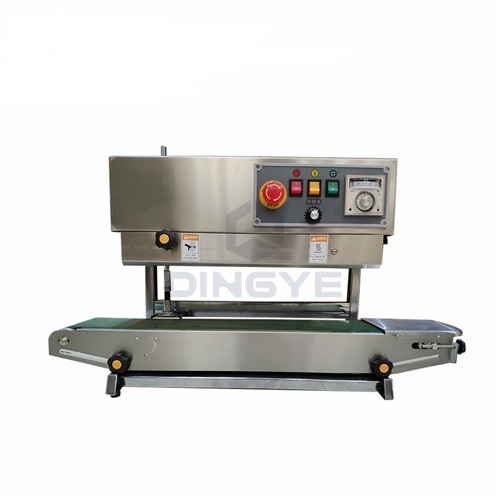

Band Sealer SS Vertical

Name: Band Sealer SS Vertical
Brand: EXTREME PACKAGING MACHINES
Price: 15000 INR
Availability: InStock

15000 INR/Unit

Get a Price/Quote

Product Details:

Voltage 220V/50Hz
Dimension (L*W*H) 840 x 380 x 550 mm
Seals Type Continuous seal
Filling Capacity Up to 3 kg pouch
Application Sealing plastic bags and pouches
Type Band Sealer SS Vertical
Color Stainless Steel Finish
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Band Sealer SS Vertical Price And Quantity

Minimum Order Quantity 01 Unit
Price 15000 INR/Unit
Price Range 10000.00 - 65000.00 INR/Unit

Band Sealer SS Vertical Product Specifications

Contact Load Standard
Sealing Type Heat Sealing
Type Band Sealer SS Vertical
Packaging Material Plastic Films (Polyethylene, Polypropylene, Laminate, etc.)
Production Capacity Up to 1500 packs/hour
Automation Grade Semi Automatic
Color Stainless Steel Finish
Sealing Length Unlimited
Sealing Speed 0-12 m/min
Power 650 W
Weight Approximately 35 kg
Dimension (L*W*H) 840 x 380 x 550 mm
Condition New
Driven Type Electric
Voltage 220V/50Hz
Application Sealing plastic bags and pouches
Packaging Speed Up to 20-25 packs/min
Seals Type Continuous seal
Filling Capacity Up to 3 kg pouch
Accuracy High

Band Sealer SS Vertical Trade Information

Supply Ability 50 Unit Per Day
Delivery Time 2 Days
Main Domestic Market All India

Product Description

FR series continuous film sealing machines finish continuous carrying, sealing and printing in one operation. The machine can be made horizontally, vertically or with stand feet. It adopts electronic constant temperature mechanism and step less speed regulating transmission motor. It can seal plastic film in various kinds of materials.

Specification

Model FR-900
Voltage 110V/220V 50-60HZ
Power 500W
Sealing speed 0-12m/min
Sealing width 6-12mm
Temperature range 0-300 Max.
Conveyor loading 3kg-5kg Printing category Steel wheel printing
Weight 25kg
Machine size 850X400X310mm

Product details

Frequency	50 Hz
Phase Type	Single
Voltage	220 V
Power Source	Electric
Material	Stainless Steel
Operational Mode	Vertical
Automation Grade	Automatic

Durable Stainless Steel Construction

Built entirely from stainless steel, the Band Sealer SS Vertical guarantees durability and rust resistance, making it a reliable choice for demanding industrial environments. Its robust design ensures longevity and consistent performance, minimizing maintenance and downtime.

Flexible & Efficient Sealing

With an adjustable conveyor and sealing temperature control, this machine can accommodate a wide variety of pouch sizes and film thicknesses. The continuous sealing technology enables unlimited sealing length, while the air-cooled system maintains consistent quality and low noise during operation.

Enhanced Productivity & Customization

Designed to optimize workflow, the Band Sealer SS Vertical offers quick packaging speeds and a printing device for optional date coding. Its semi-automatic operation supports high-volume production, allowing users to seal up to 1500 packs per hour with adjustable sealing width and reliable accuracy.

FAQs of Band Sealer SS Vertical:

Q: How does the adjustable temperature feature enhance sealing performance?

A: The adjustable temperature range (0-300C) ensures optimal sealing for a wide variety of plastic films. Users can customize heat settings based on the thickness and material type, resulting in strong and reliable seals without damaging the pouch.

Q: What types of packaging materials are compatible with the Band Sealer SS Vertical?

A: This band sealer works perfectly with most plastic films, including polyethylene, polypropylene, and laminated materials. It accommodates film thicknesses from 0.08 to 0.5 mm, making it versatile for various packaging applications.

Q: When should I adjust the conveyor height and load capacity settings?

A: Adjust the conveyor height to match the size and type of pouch you are sealing, particularly when switching between products with different filling capacities (up to 3 kg per pouch). The conveyor supports up to 5 kg, ensuring stable transport during sealing.

Q: Where can the Band Sealer SS Vertical be installed for optimal use?

A: This compact machine (dimensions 840 x 380 x 550 mm) is suitable for installation in factories, warehouses, packaging stations, or any environment requiring reliable pouch sealing. It requires a standard power source of 220V/50Hz and minimal footprint.

Q: What is the process for using the optional date coding device?

A: If equipped, the date coding device allows users to print production or expiry dates directly onto sealed pouches during the sealing process. Simply set up the device, input the required information, and operate the sealer as usual; the printing occurs simultaneously with sealing.

Q: How does the air-cooled system benefit users during prolonged operation?

A: The air-cooled cooling system helps maintain the machines operating temperature, reducing the risk of overheating. This ensures consistent seal quality and prolongs the machines lifespan, especially during extended periods of high-speed packaging.

Q: What are the main benefits of using the Band Sealer SS Vertical in packaging?

A: Benefits include increased packaging speed (up to 20-25 packs per minute), high production capacity, reduced labor, precise heat sealing for leak-proof results, customizable settings, and improved workflow efficiency for small to large businesses.
